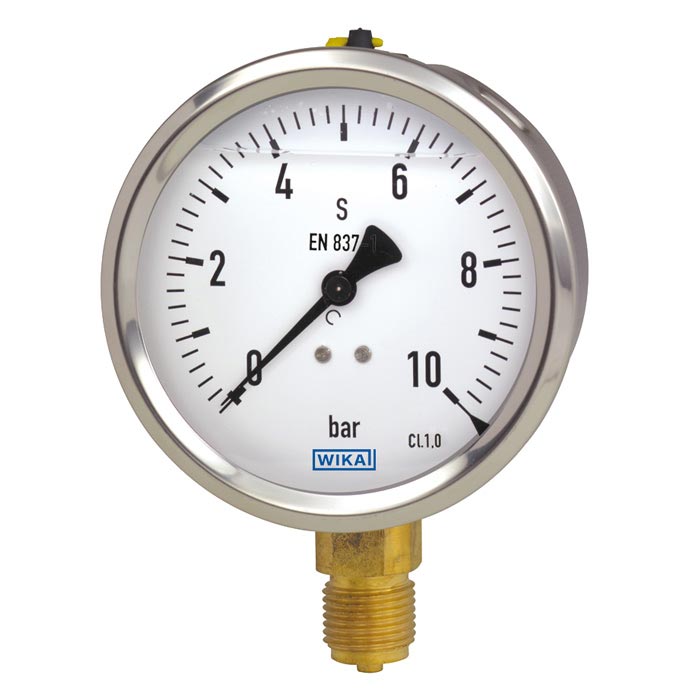

Pressure Gauge 213.53
Bourdon tube pressure monitor containing oil, model 213.53, has a body made of stainless steel and wet parts made of copper alloy.
The oil content is because the display hand is resistant to the effects of vibration and shock.
This type of pressure display is made by Bourdon tube measurement method. In this method, the bending of the Bourdon tube, which has a spring property, is related to the amount of pressure; in such a way that by increasing the pressure of the fluid inside the tube, it forces it to open and reducing the pressure reduces the spring property of the tube; This mechanical change can be displayed by the hand.
applications :
For measuring points with high dynamic pressure along with vibration
For gases and liquids with low viscosity
Hydraulic systems
Compressors, shipbuilding
Measuring the parameters of a process is done in order to control, display and correctly plan for a system. Today, measuring and displaying pressure is an important operation in most industries; Therefore, a pressure monitor must have high technology and proper flexibility. A pressure monitor should have high reliability, sufficient accuracy and be easy to read. According to the form and materials used in the displays, they can be used to measure the pressure of gases, liquids and even solids in many applications and industries. There are many methods for measuring and displaying pressure, the most important and most widely used of which is the Bourdon tube method; WIKA company produces and supplies various types of pressure monitors.
